Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate

    Buy cheap Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate from wholesalers

    Buy cheap Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate from wholesalers
    • Buy cheap Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate from wholesalers
    • Buy cheap Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate from wholesalers
    • Buy cheap Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate from wholesalers
    • Buy cheap Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate from wholesalers
    • Buy cheap Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate from wholesalers
    • Buy cheap Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate from wholesalers

    Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate

    Ask Lasest Price
    Brand Name : STR
    Model Number : DT-4
    Certification : ISO
    Price : USD 500~800
    Supply Ability : 1000 sets per year
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate

    Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate

    Best price low power consumption DT series middle speed rice mill elevator with ISO 9001 certificate

    Product Usage:

    It is used to lift loose granular materials vertically,whose density is not more than 2 t/m3 ,with high speed.It can be used in different rice mill plant to satisfy different capacity requirement.


    Product Features:

    1.Small installation space,large capacity, high lifting height

    2. Total enclosed structure with good sealing,no dust leak out.
    3. Materials are fed into the bucket evenly ;

    4. The height of elevator is customized according to real condition;

    5. The bucket tension can be adjusted easily;

    6. Less back-flow.

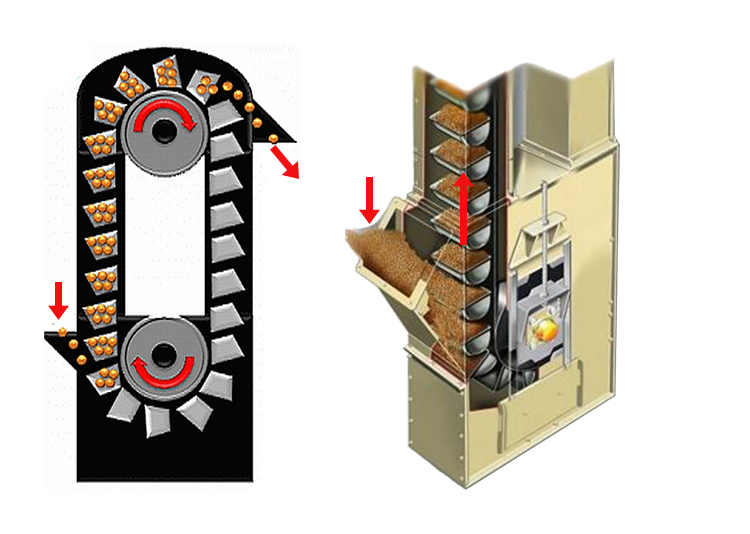

    Working Principle:

    The driving device drives the pulley to make the belt with plastic buckets do circular movement from head to tail.There is feeding inlet at tail and discharging outlet at head.Thus materials are fed from the bottom and discharged from the top.

    The bucket filled with material goes to the head section, then the material is thrown out from the outlet under the action of centrifugal force.The empty bucket goes back to the tail section and filled with material at the inlet again,then lifted up to head section and do parabolic discharge movement for discharging. The cycle realizes the vertical transportation of materials.


    Main Technical Parameters:

    TypeCapacity (Kg/h)Power (Kw)NotesWeight(kg)
    DT43500-45000.75Plastic Bucket230
    DT65000-60001.1Plastic Bucket260
    DT87000-80002.2Plastic Bucket350
    DT1512000-160003Plastic Bucket410

    Factory Information:

    Established in 1937, our company has grown into China's oldest and most professional rice mill machines manufacturer.Nearly 2000 staffs work here.


    We specialized in manufacturing all kinds of rice mill machines such as N series jet rice mill machine;SN,SN-A,SN-B series of double blower rice mill machine;LNT,LNT-X series of combined rice mill machine;MCHJ series of rice mill plant;LM24-2C,LJ-25 type rice huller;FT series of suction elevator;DT series elevator;combined cleaning and de-stoner,and so on.


    'RiJi" brand products are Province Inspection Exemption Product.


    Three "Best" is the core of our company:


    1.Best Quality:with 77 years of experience


    2.Best Price:This is due to mass production


    3.Best Service:This is realized by the best management of our leaders.


    overview:

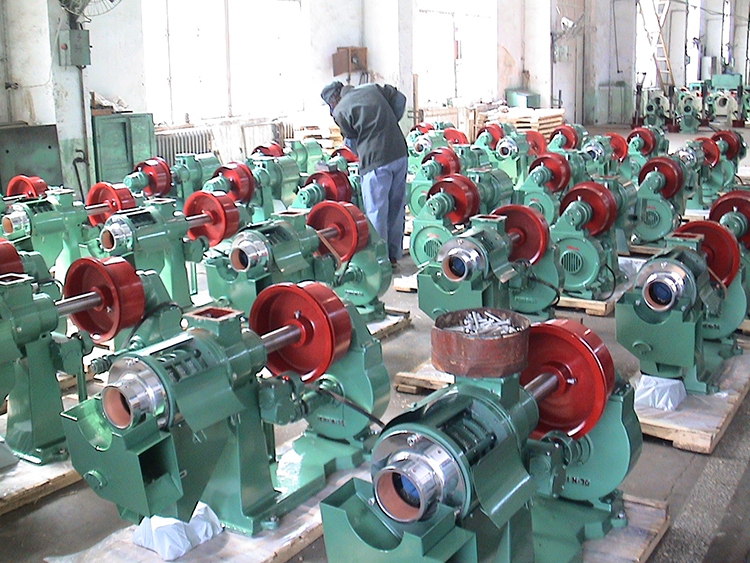

    Factory

    Workshop



    Contact Information:

    Person:Lindaleaf

    Skype:presmile1

    Mobile/Whatsapp/Wechat:+86 18763375732

    weixin

    We promise to give you a best experience of purchasing!
